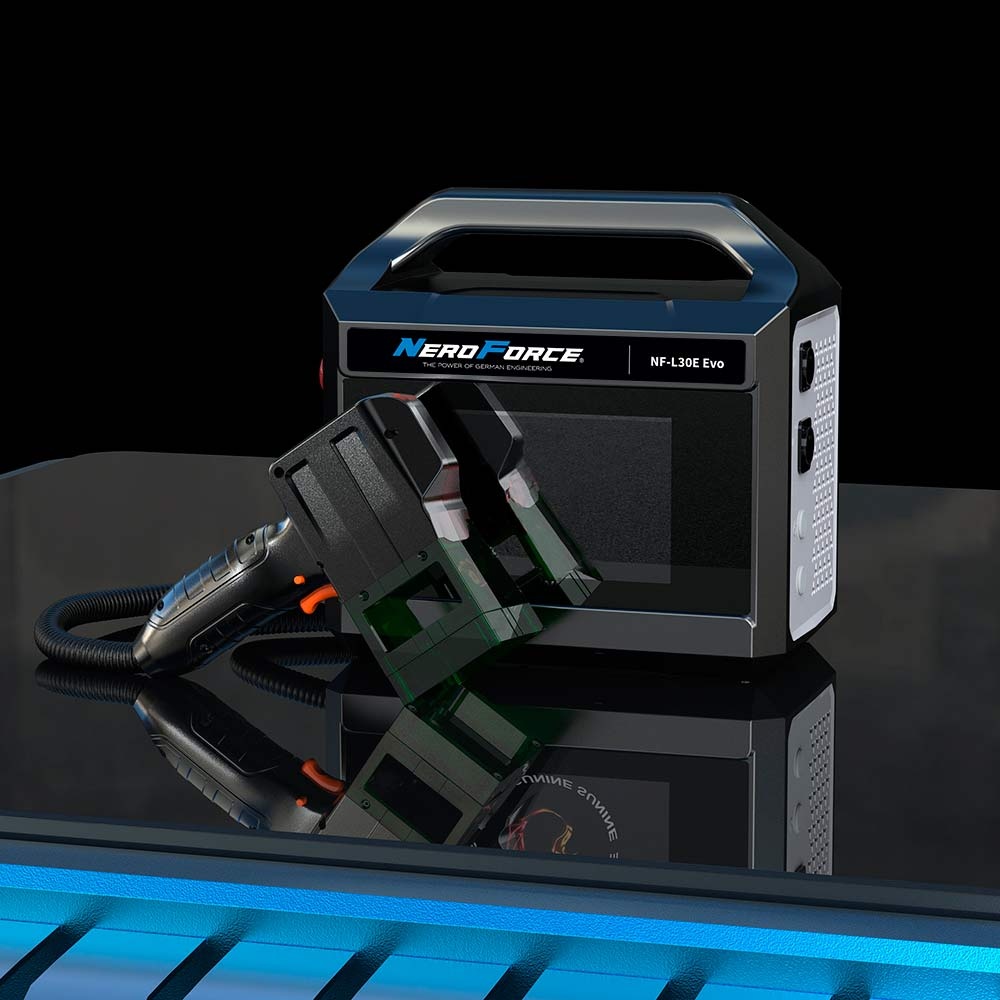

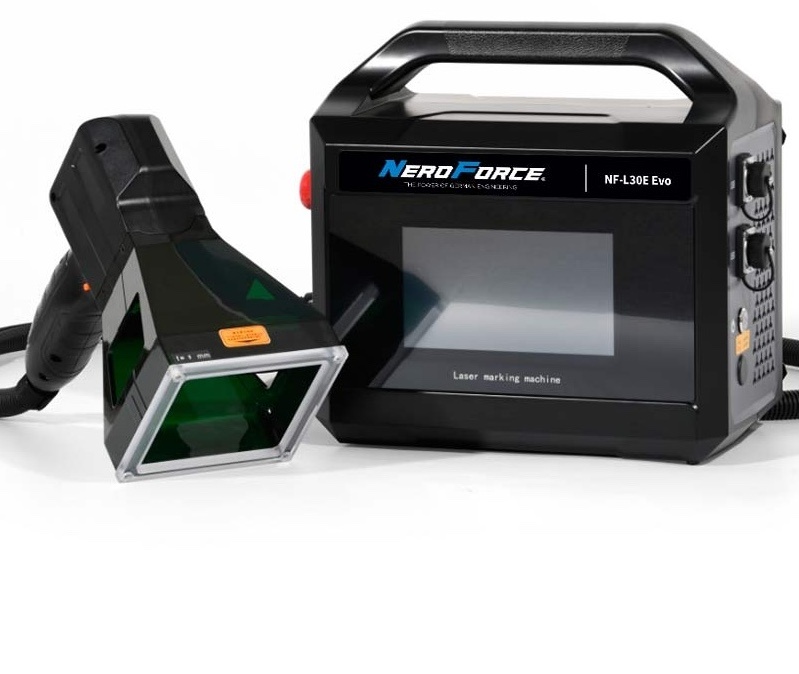

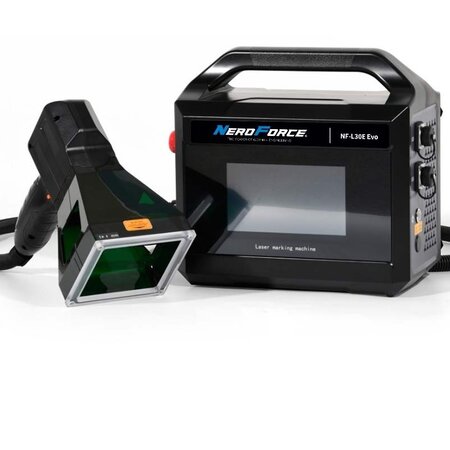

Handheld 30W Static Fiber Laser EVO, LCD Screen, Linux, 230V, with exchangable Battery (Capacity: 12Ah, Working hours: 5,5h)

LASER MARKING SYSTEM - Unmatched COMPACT & MOBILE - for demanding industrial applications.

Now available: 3rd generation with enhanced safety features:

• Additional mechanical trigger lock to prevent unintentional laser activation

• Head-mounted distance sensor prevents laser activation when not positioned on the marking surface.

Users appreciate its high mobility, enabling an unparalleled range of applications on components and machines that cannot be processed in enclosed or automated marking systems. Especially suitable for on-site use at construction sites or external locations.

As a result, this device has become the preferred method for flexible and permanent part marking across numerous businesses in various industries.

Our satisfied customers include automobile manufacturers and suppliers, construction companies, metal & plastic processing companies, rubber specialists such as tire retreaders or conveyor belt operators, rental park/workshop operators, manufacturers of personalized promotional items, etc.

Compelling arguments:

• Long-term stable operation
  • Highly developed components for reliable performance
  • Power-on and instantly ready for use with minimal maintenance costs
  • Durable and maintenance-free construction, making it an industrial laser marker of the highest quality and reliability
• Efficient operation
  • The highly mobile design enables a broad range of applications, such as construction sites or external locations, as well as marking on components and machines that cannot be marked in enclosed or automated systems
  • Air-cooled, no need for water cooling, significantly more efficient and economical power consumption
• Easy to use
  • Intelligent touchscreen panel
  • Self-explanatory software
  • Password access for protection against unauthorized use
  • Supports various languages
  • one-button marking Input possible via barcode/QR code reader
• High-Tech Design
  • The very compact high-speed galvanometer scanner allows for fast, highly precise focusing of the laser head
  • Lightweight housing made of high-density plastic materials
  • Quartz-coated field lens with high transmission expands the marking area.

Techn. Specifications:

• Available in 2 Power Specifications: 20W or 30W
• Available as Plug in 230V or with exchangeable Li-Ion Power battery
• Transportable, mobile & compact design with only 9kg weight (Battery version 9,8kg)

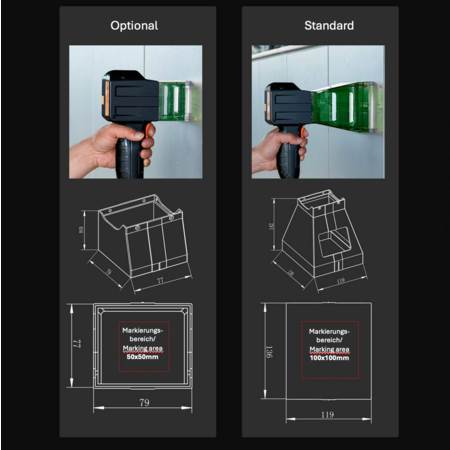

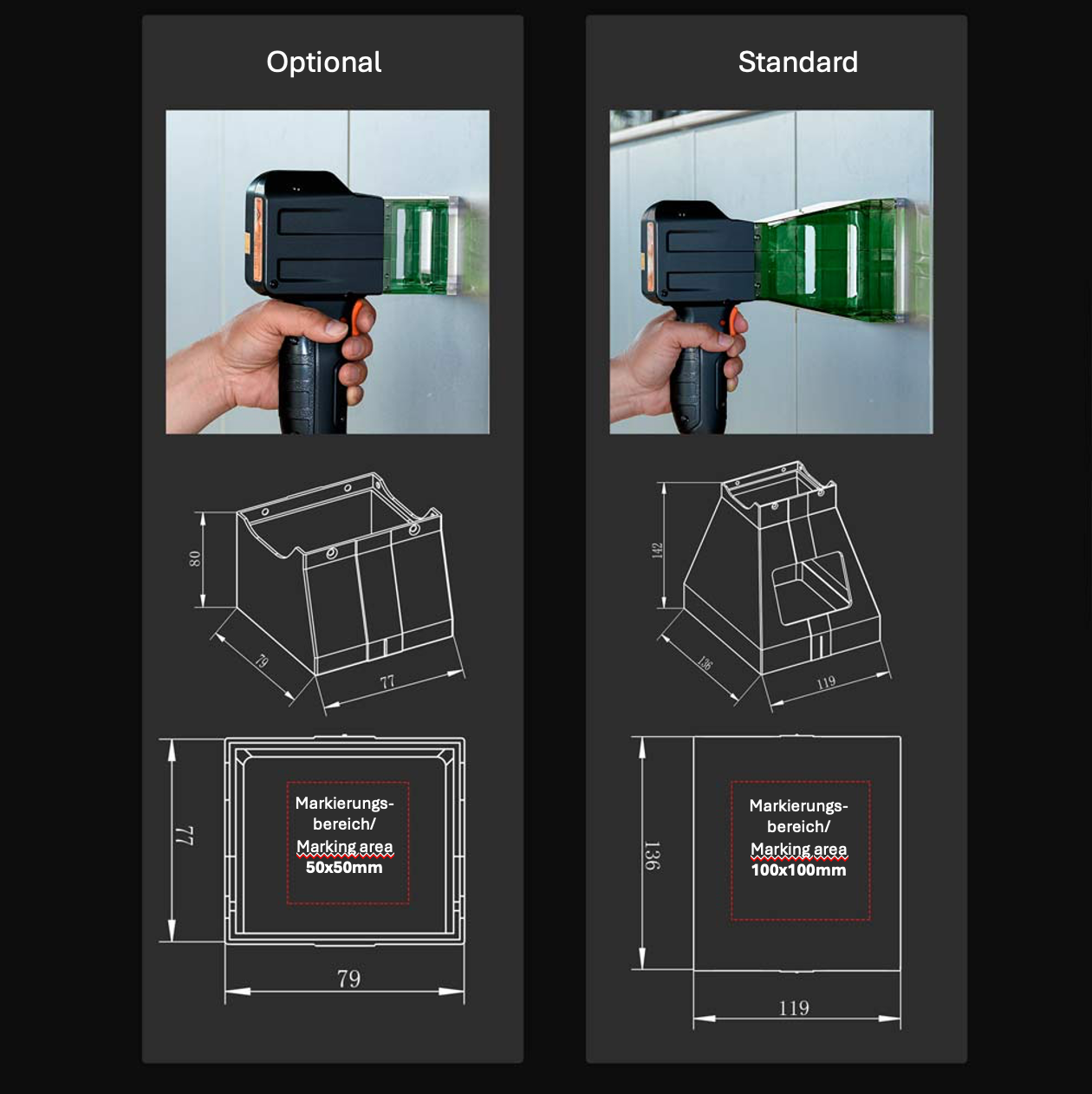

• Max size of marking: 100x100mm or 50x50mm
• 230V (110V under preparation)
• Wavelength 1064nm (Pulse)
• Warranty: 18 months
• Lifetime of LASER unit approx. 100.000h
• CE marked
• Shipping Box: 60x40x38cm

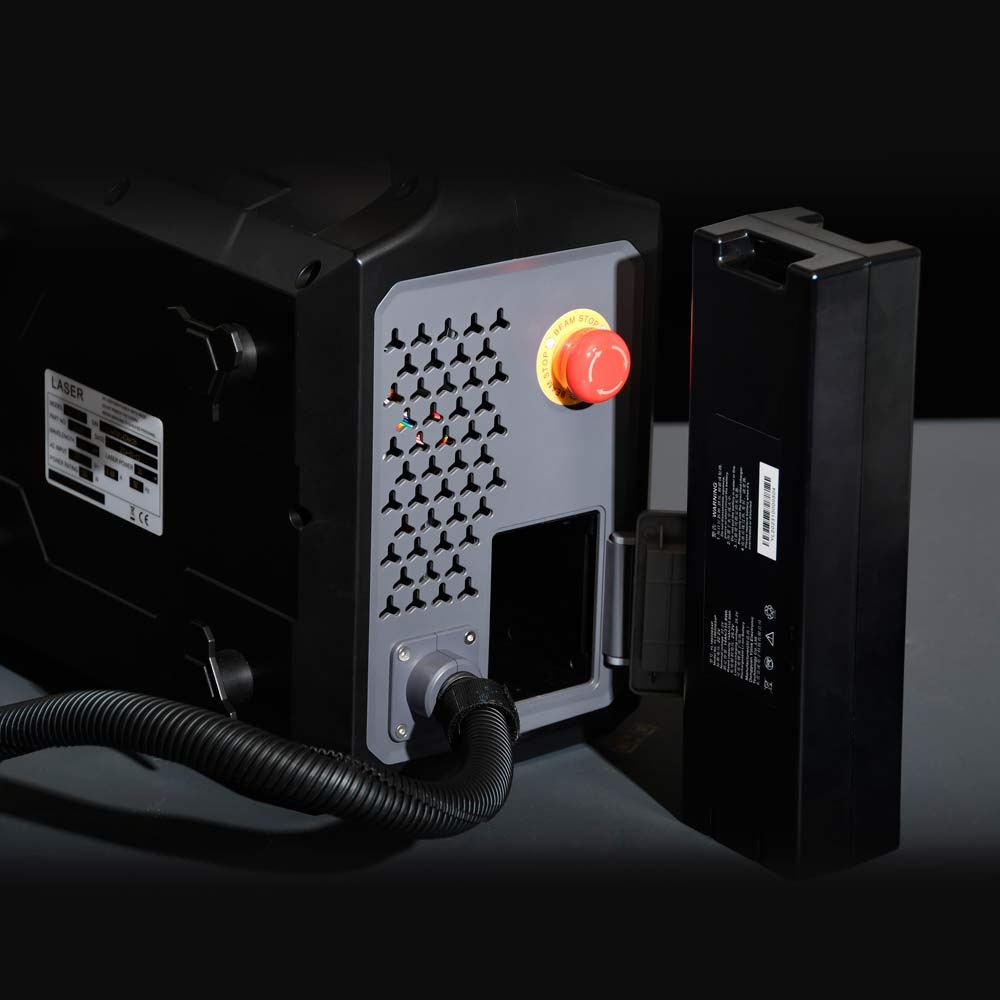

Battery powered version:

This specific Version comes with an integrated rechargeable battery. This enables the laser to be used without any external power supply cable connected. Operation time / battery power approximately 5,5h. Charging of the battery will be done externally with the also supplied charger. Charging time approx. 4h.

NOTE: Battery to be considered as hazardous - International Shipping may generate additional costs

Application:

Applies within seconds individual logo files (jpeg, png, etc), QR Code, graphics, date, serial numbers, etc. on various materials:

• Rubber Products / Tyres / Conveyor belts
• Hardware / Metal / Tools
• PVC / PU / Plastic
• Coated Surfaces
• Coated Cartons
• Aluminum products, cases, frames, etc.


Demo Videoclip (Tyre marking):

Demo Videoclip (Logo on Aluminium):

Set contains:

Laser unit equipped with exchangeable Battery (1unit), Protection Cover 100x100mm incl. 4 templates and required tools for mounting/demounting, Charging Cable, 2 pc Touchpens, Replacement screen protections, Manual in English&German.

Payment method:
50% down payment with order, remaining amount due 14days net from date of dispatch

Please note:

• Laser Class 4 product
• High Performance Material Processing Laser
• Country specific safety regulations may apply

Note about Integration / Interfaces:

In the event you look for a laser marker which shall be integrated into your Production line, or controlled via your ERP System, production software - we do promote our stationary Laser Marker System NF 3000i. This powerful system does offer a number of different interfaces which enables the individual fully automated control / operation:  https://www.neroforce.com/en/stationary-high-performance-laser-marking-machine.html
